Drawer System

Slim Box Drawer (89mm)

Cubist Drawer System

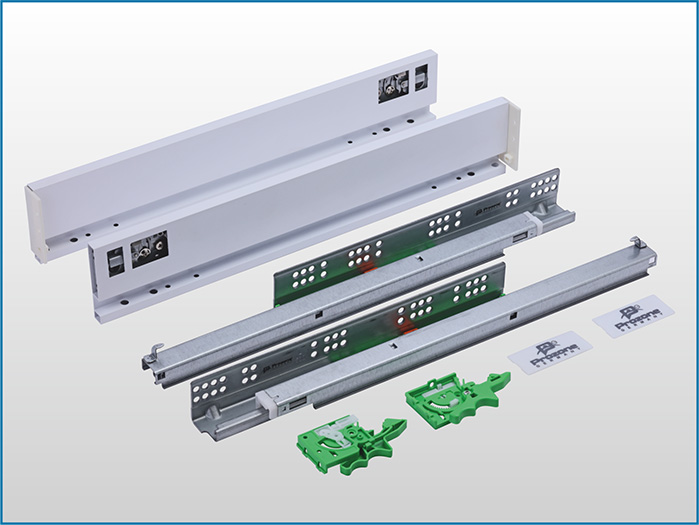

Slim Box Drawer System
Slim Box Drawer System
  • 3-dimensional adjustment
  • Fit using any type undermount drawer slide
  • Fit using single, extension and full extension undermount drawer slide
  • Integrated side, height and tilt angle adjustment
  • 90° straight insude and outside
  • Slim box 14mm width drawer side
  • Tool-free front assembly
  • 16mm thickness bottom panel machining not required

Detail :

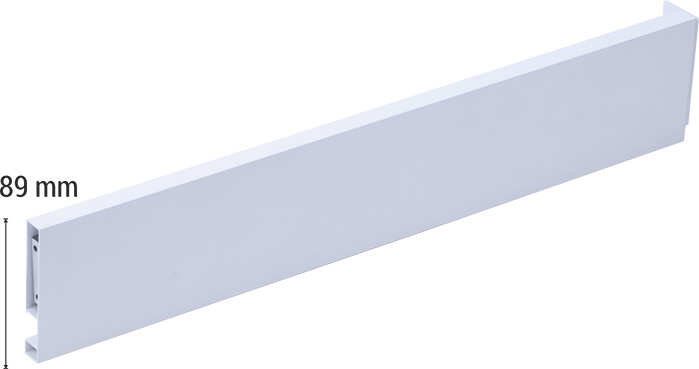

Height(mm): 89

Length: 350,400, 450, 500, 550

Finish: Silver White

Capacity: 40Kg.

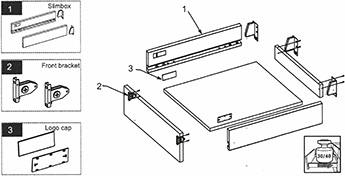

Including Fittings

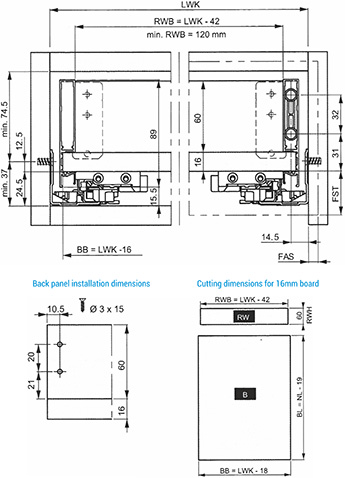

Design For Using Excel Series Slides

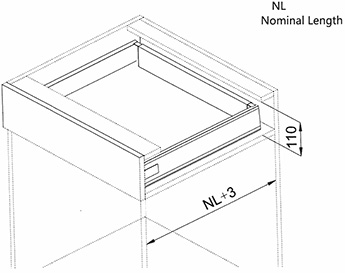

Space Requirement
