Under Mount Slide

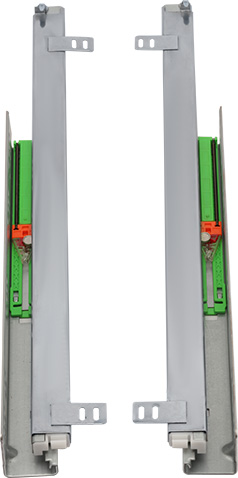

Use Of Alluminium Basket, Wooden Drawer And Perforated Basket(With S S Strip 304)

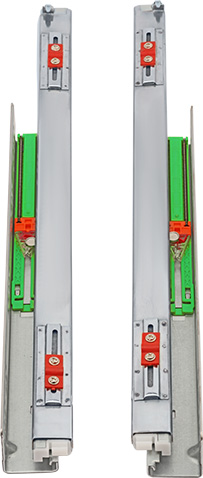

Use Of Wire Basket(With S S Strip 304)

• Full extension (3 sections)
• DX51D+Z(ST02), thickness 1.0mm / 105mm / 108mm
• Maximum load capacity 40kgs
• Tool-free drawer assembly and disassembly
• 16mm or 18mm thickness drawer as optipn choice
• High quality metal damper makes sure pass 80,000 cycles test
• 2 Spring soft closing design-pull out force light and close completely

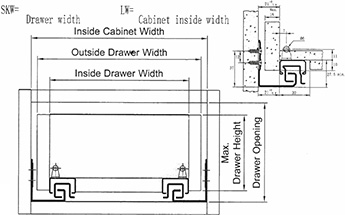

Space Arrangement For AS Slide
